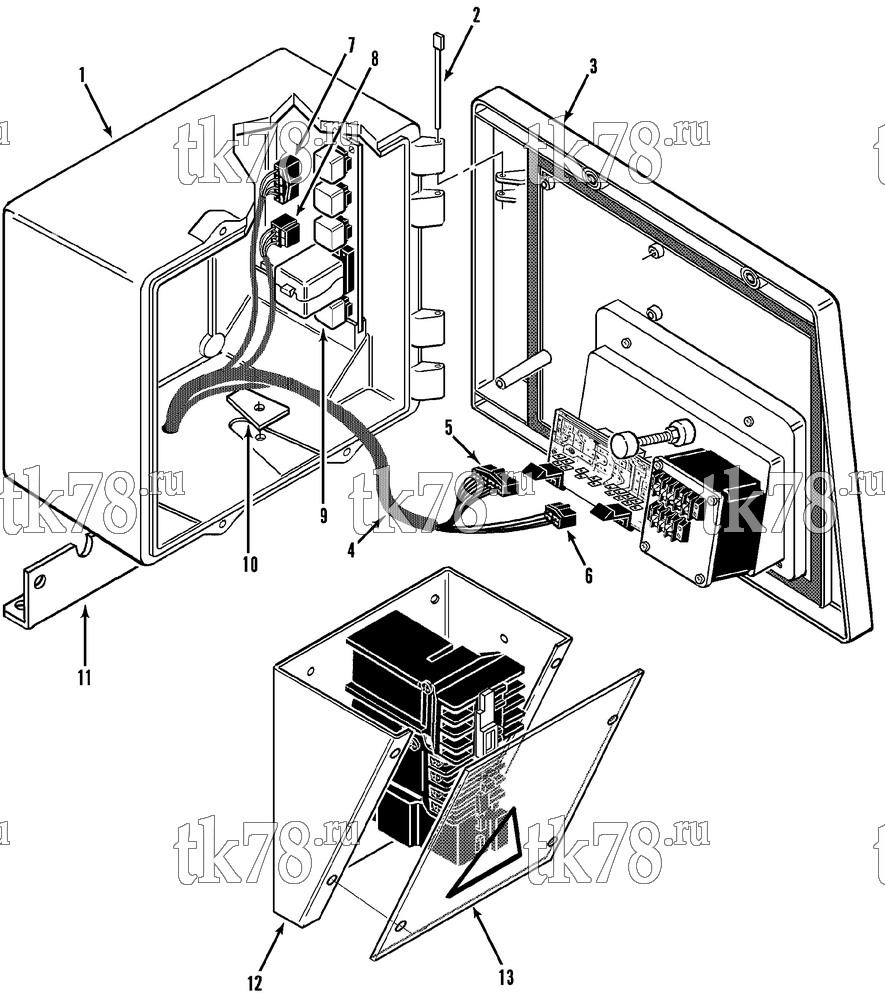

Установкa Thermo King схема CONTROL BOX ASSEMBLY – 106C8
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4306 | BOX - control (subassembly) | 1 | |
| 99-6093 | MOUNT - cable (harness) | 2 | ||
| 55-3443 | SCREW - mount | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2270 | RIVET - mount | 1 | ||
| 12-643 | GASKET - pc board | 1 | ||
| 2 | 91-1093 | PIN - hinge | 2 | |
| 3 | 90-355 | KIT - panel, control box cover (see 103A3) | 1 | |
| 92-4101 | ADAPTER - thermostat plate | 1 | ||
| 91-4509 | PANEL - control box cover | 1 | ||
| 4 | 44-9487 | HARNESS - main | 1 | |
| 5 | 44-5030 | CONNECTOR (6-pin, female) | 2 | |
| 6 | 44-5814 | CONNECTOR (4-pin, female) | 2 | |
| 7 | 44-5719 | CONNECTOR - remote light box (8-pin) | 1 | |
| 8 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 44-6248 | CONNECTOR - pc board (3-pin, female) | 1 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-7327 | CONNECTOR - pilot solenoid (1-pin, female) | 1 | ||
| 44-5835 | CONNECTOR - shroud, hpco (2-pin) | 1 | ||
| 44-6381 | CONNECTOR - hourmeter (1-pin) | 2 | ||
| 9 | 44-9488 | BOARD - relay/pc (see 102G10) | 1 | |
| 55-3844 | SCREW - board | 2 | ||
| 91-3500 | PILLAR (8-32 x 1.25) | 2 | ||
| 91-3501 | PILLAR (8-32 x 2.00) | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 10 | 91-1097 | SPACER - box | 2 | |
| 99-3281 | MOUNT - cable tie (harness) | 1 | ||
| 55-4318 | FLATWASHER | 1 | ||
|
20-55-4318 | Крепеж | 1 730 ₽ |
|
| 55-2270 | RIVET - mount | 1 | ||
| 11 | 91-1098 | SUPPORT - control panel | 1 | |
| 91-1741 | NUTSTRIP (6.5 in bhc) | 1 | ||
| 91-1275 | NUTSTRIP (8.8 in bhc) | 1 | ||
| 55-4580 | SCREW - box (truss head) | 4 | ||
| 55-5970 | WASHER - sealing | 4 | ||
| 55-1587 | SCREW - box (hh) | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 12 | 91-1094 | TRAY - high voltage (see 106C9) | 1 | |
| 55-3443 | SCREW - tray | 4 | ||
| 55-3800 | WASHER - sealing | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 13 | 91-1100 | SHIELD - high voltage | 1 | |
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 55-3029 | SCREW - shield | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 |
