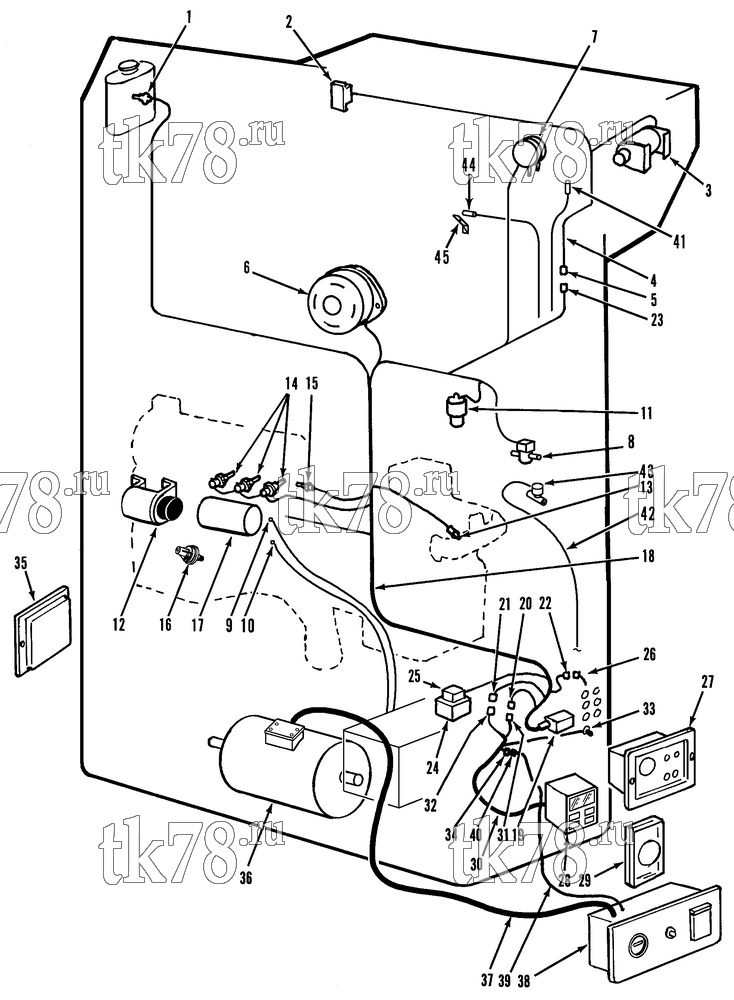

Установкa Thermo King схема ELECTRICAL COMPONENTS (LND 50s) – 105G11
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6534 | SENSOR - coolant level | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 44-9582 | HARNESS - coolant sensor | 2 | ||
| 44-6462 | SOCKET - light | 1 | ||
| 44-8017 | DETECTOR - liquid level | 1 | ||
| 55-1049 | SCREW - detector | 2 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-5292 | NUT | 2 | ||
| 2 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 3 | 44-2823 | SOLENOID - defrost damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 99-2244 | STRAP - ground | 1 | ||
| 4 | 44-9559 | HARNESS - evaporator | 1 | |
| 5 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 6 | 44-8500 | ALTERNATOR (35 amp, see 113F12) | 1 | |
| 7 | 44-7157 | SWITCH - air defrost | 1 | |
| 8 | 44-8185 | VALVE - solenoid | 1 | |
| 41-3681 | COIL | 1 | ||
| 41-3681 OEM | Катушка соленоида | 24 630 ₽ |
|
|
|
10-41-3681 | Катушка соленоида 12V | 12 220 ₽ |
|
| 9 | 41-1610 | CABLE - battery (positive) | 1 | |
| 10 | 41-1611 | CABLE - battery (negative) | 1 | |
| 11 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 12 | 44-9181 | SOLENOID - throttle | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 5 860 ₽ |
|
| 13 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 14 | 41-6582 | GLOW PLUG | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| 15 | 44-3018 | SWITCH - high coolant temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 16 | 41-6865 | SWITCH - low oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 17 | 45-1718 | STARTER (see 132A8) | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 310 ₽ |
|
|
| 845-2326 | STARTER (remanufactured) | 1 | ||
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 18 | 44-9584 | HARNESS - main | 1 | |
| 19 | 44-5214 | SOCKET - control panel | 1 | |
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 20 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 21 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 22 | 44-5728 | CONNECTOR (4-pin) | 1 | |
| 23 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 24 | 44-5537 | SOCKET - relay | 2 | |
| 25 | 44-9111 | RELAY - mini (speed run) | 4 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 26 | 44-9583 | HARNESS - indicator light | 1 | |
| 44-5814 | CONNECTOR (4-pin) | 1 | ||
| 44-6462 | SOCKET - light | 3 | ||
| 44-3711 | BULB - light | 6 | ||
| 27 | 45-1505 | PANEL - switch (see 105G13) | 1 | |
| 28 | 45-1579 | THERMOSTAT - TG V | 1 | |
| 29 | 91-2674 | COVER - thermostat | 1 | |
|
10-91-2674 | Крышка термостата | 9 200 ₽ |
|
| 33-2145 | GASKET | 1 | ||
| 55-1871 | SCREW - thermostat | 4 | ||
| 30 | 44-9581 | HARNESS - thermostat (Thermoguard, see 106B1) | 1 | |
| 44-5310 | CONNECTOR (15-pin) | 1 | ||
| 44-5220 | COVER - socket | 1 | ||
| 55-103 | SCREW - cover | 2 | ||
| 31 | 44-5718 | CONNECTOR (8-pin) | 1 | |
| 32 | 44-5600 | CONNECTOR (6-pin) | 1 | |
| 33 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 34 | 44-5814 | CONNECTOR (4-pin) | 1 | |
| 35 | 91-4082 | PANEL - cover | 1 | |
| 33-1839 | GASKET - panel | 1 | ||
| 55-7035 | SCREW - panel | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7408 | WASHER - captive | 2 | ||
| 36 | 104-543 | MOTOR | 1 | |
| 55-8803 | BOLT - thru | 4 | ||
| 37 | 44-6716 | CONDUIT | 1 | |
| 38 | N/A | TRAY - linestarter (see 105G8) | 1 | |
| 39 | 44-9558 | HARNESS - linestarter | 1 | |
| 41-404 | HARNESS - linestarter (w/ auto phase selection) | 1 | ||
| 40 | 44-4925 | CONNECTOR (6-pin) | 1 | |
| 41 | 44-5236 | SENSOR - thermostat | 1 | |
| 42 | 41-860 | HARNESS - modulation | 1 | |
| 43 | 66-7302 | VALVE - modulation | 1 | |
| 44 | 41-418 | SENSOR - modulation (option) | 1 | |
| 45 | 91-5540 | BRACKET - bulb | 1 |
