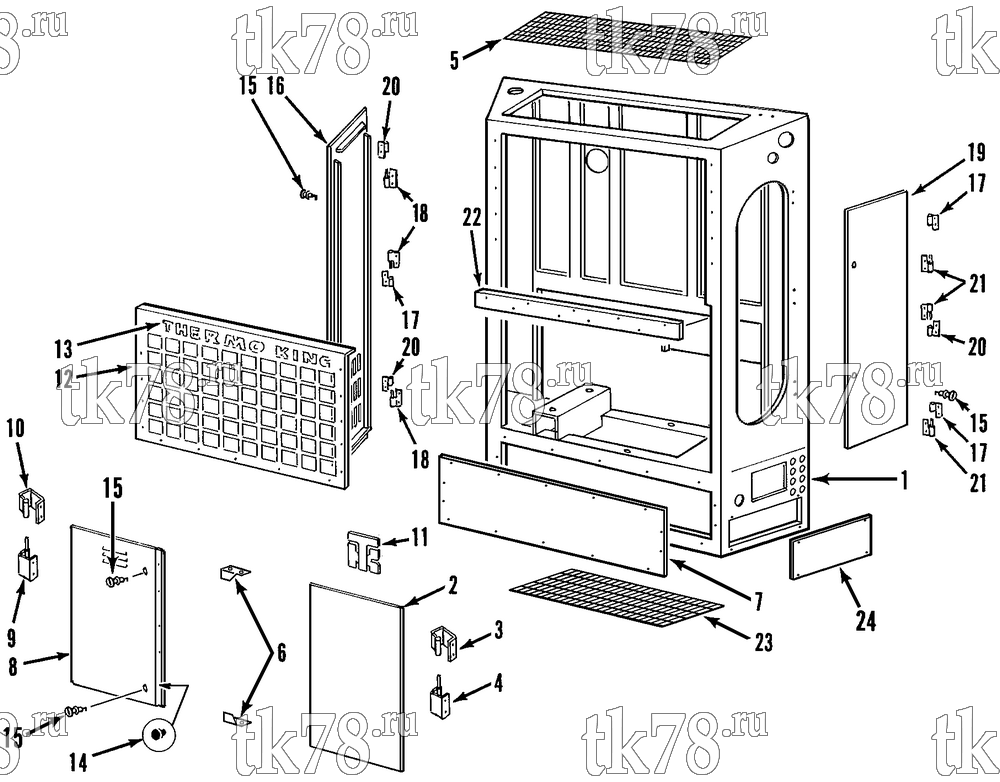

Установкa Thermo King схема FRAME & DOOR GROUP – 105G1
Обновление от: 4/19/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4157 | FRAME - condenser | 1 | |
| 2 | 98-4189 | DOOR - left | 1 | |
| 3 | 99-8203 | HINGE - door | 2 | |
| 4 | 99-8202 | HINGE - door (w/ pin) | 1 | |
| 99-3989 | HINGE - door (w/ pin) | 1 | ||
| 99-8223 | SHIM - hinge (0.032 thk) | A/R | ||
| 55-6994 | SCREW - hinge | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 91-3988 | NUTSTRIP | 2 | ||
| 5 | 98-2942 | SCREEN - top | 1 | |
| 55-2681 | SCREW - screen | 6 | ||
| 55-5294 | CLAMP - screen | 6 | ||
| 33-1065 | GROMMET - bumper | 2 | ||
| 6 | 91-3990 | STRIKE - door (front) | 2 | |
| 55-6994 | SCREW - strike | 4 | ||
| 55-7042 | NUT - strike | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 7 | 91-3991 | PANEL - access | 1 | |
| 55-6994 | SCREW - panel | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7408 | WASHER - captive | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 8 | 98-4190 | DOOR - right (curbside) | 1 | |
| 55-2984 | PIN - cotter | 2 | ||
| 9 | 99-8205 | HINGE - door (w/ pin) | 1 | |
| 91-5501 | HINGE - door (w/ pin) | 1 | ||
| 10 | 99-8203 | HINGE - door | 2 | |
| 99-8223 | SHIM - hinge (0.032 thk) | A/R | ||
| 55-6994 | SCREW - hinge | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 91-3988 | NUTSTRIP | 2 | ||
| 11 | 91-5205 | NAMEPLATE - TK Logo | 1 | |
| 12 | 98-4248 | GRILLE - condenser | 1 | |
| 98-2801 | GRILLE - condenser (stainless steel, optional) | 1 | ||
| 91-3954 | BUMPER - grille | 4 | ||
| 91-3955 | NUTSTRIP - grille | 2 | ||
| 55-6994 | SCREW - grille | 10 | ||
| 55-7170 | LOCKWASHER | 10 | ||
| 55-7075 | FLATWASHER | 10 | ||
| 55-7468 | WASHER - captive | 15 | ||
| 13 | 99-5795 | NAMEPLATE - Thermo | 1 | |
| 99-5796 | NAMEPLATE - King | 1 | ||
| 14 | 33-1435 | GROMMET - bumper | 33 | |
| 15 | 99-8416 | LATCH - door | 6 | |
| 99-665 | NUT - latch | 6 | ||
| 99-9098 | KEY - door | 2 | ||
| 99-1046 | PLATE - door latch | 4 | ||
| 55-3049 | SCREW - plate | 8 | ||
| 16 | 98-4191 | DOOR - side (right, curbside) | 1 | |
| 17 | 99-3521 | HINGE - door | 3 | |
| 55-7340 | SCREW - hinge to door | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 55-7034 | NUT | 6 | ||
| 18 | 99-1618 | HINGE - frame (w/ pin, center) | 1 | |
| 99-1621 | HINGE - frame (w/ pin, top & bottom) | 2 | ||
| 55-3049 | SCREW - hinge | 6 | ||
| 19 | 98-4192 | DOOR - side (left, roadside) | 1 | |
| 20 | 99-1580 | HINGE - door | 3 | |
| 55-7340 | SCREW - hinge to door | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 55-7367 | NUT | 6 | ||
| 21 | 99-8206 | HINGE - frame (w/ pin, center) | 1 | |
| 99-8207 | HINGE - frame (w/ pin, top & bottom) | 2 | ||
| 55-3049 | SCREW - hinge | 6 | ||
| 22 | 98-4158 | CHANNEL - condenser | 1 | |
| 55-6993 | SCREW - channel | 8 | ||
| 55-6988 | FLATWASHER | 16 | ||
| 55-7339 | NUT | 8 | ||
| 23 | 91-4100 | SCREEN - bottom | 1 | |
| 55-5294 | CLAMP - screen | 8 | ||
| 55-2681 | SCREW - clamp | 8 | ||
| 24 | 91-4102 | COVER - blank (30s) | 1 | |
| 55-7372 | SCREW - cover | 4 | ||
| 55-7000 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 |
