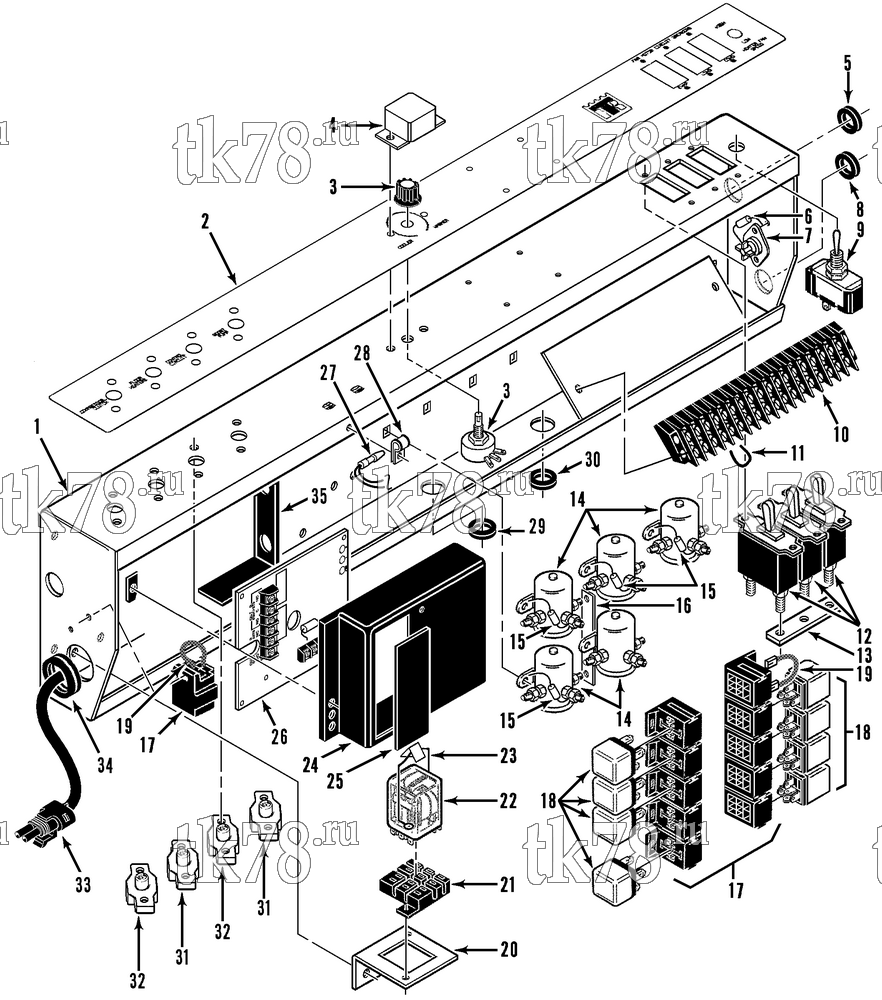

Установкa Thermo King схема CONTROL PANEL (T10-M4) – 105F2
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4055 | PANEL - control | 1 | |
| 55-5206 | INSERT - threaded (10-32) | 10 | ||
| 55-6774 | INSERT - threaded (6-32) | 4 | ||
| 2 | 91-4056 | NAMEPLATE - panel | 1 | |
| 3 | 44-8118 | SWITCH - control | 1 | |
| 44-7477 | SWITCH - potentiometer | 1 | ||
| 91-903 | KNOB - switch | 1 | ||
| 4 | 99-9762 | COVER - switch | 1 | |
| 55-3513 | SCREW - cover | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 5 | 33-1809 | GROMMET | 1 | |
| 6 | 44-9614 | DIODE | 1 | |
| 44-3400 | DIODE - only | 1 | ||
| 7 | 44-4035 | RECTIFIER | 1 | |
| 55-3003 | SCREW - rectifier | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT (hex) | 2 | ||
| 8 | 33-452 | GROMMET | 1 | |
| 9 | 44-5861 | SWITCH - high/low (1pst) | 1 | |
| 10 | 44-6504 | BOARD - terminal | 1 | |
| 91-4057 | MARKSTRIP | 1 | ||
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 11 | 44-3579 | STRIP - jumper | 1 | |
| 12 | 44-5494 | BREAKER - circuit (65 amp) | 3 | |
| 55-3513 | SCREW - breaker | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 13 | 44-6044 | JUMPER - circuit breaker | 1 | |
| 14 | 41-3987 | SOLENOID | 5 | |
| 55-1587 | SCREW - solenoid | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-2993 | LOCKWASHER | 10 | ||
| 55-3059 | NUT - captive | 10 | ||
| 15 | 44-6007 | DIODE | 4 | |
| 44-3400 | DIODE - only | 4 | ||
| 16 | 44-8022 | JUMPER | 1 | |
| 17 | 44-5537 | SOCKET - relay | 11 | |
| 55-3015 | SCREW - socket | 5 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 18 | 44-9112 | RELAY (1pdt) | 8 | |
| 19 | 44-9615 | HARNESS - jumper | 2 | |
| 20 | 99-4268 | BRACKET - relay | 1 | |
| 55-3027 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 21 | 44-3184 | SOCKET - relay | 1 | |
| 22 | 44-4025 | RELAY (3pdt) | 1 | |
| 23 | 99-2027 | SPRING - holddown | 1 | |
| 55-2771 | CLAMP - spring | 1 | ||
| 55-2270 | RIVET - spring & socket | 2 | ||
| 24 | 92-6976 | DOOR - thermostat | 1 | |
| 55-3843 | SCREW - thermostat | 2 | ||
| 55-3027 | SCREW - cover | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 33-367 | GROMMET | 1 | ||
| 25 | 91-2853 | DOOR - cover | 1 | |
| 26 | 44-7476 | THERMOSTAT - solid state | 1 | |
| 27 | 44-8747 | SENSOR - thermostat (complete) | 1 | |
| 44-9923 | SENSOR - only (10 ft leads) | 1 | ||
| 28 | 55-3484 | CLAMP - sensor | 1 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT (hex) | 1 | ||
| 29 | 33-367 | GROMMET | 1 | |
| 30 | 33-629 | GROMMET | 1 | |
| 31 | 44-7217 | BREAKER - circuit (15 amp) | 2 | |
| 32 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 33 | 44-5838 | CONNECTOR - tower | 1 | |
| 34 | 33-2346 | GROMMET | 1 | |
| 35 | 91-2854 | PLATE - cover (metal) | 1 |
