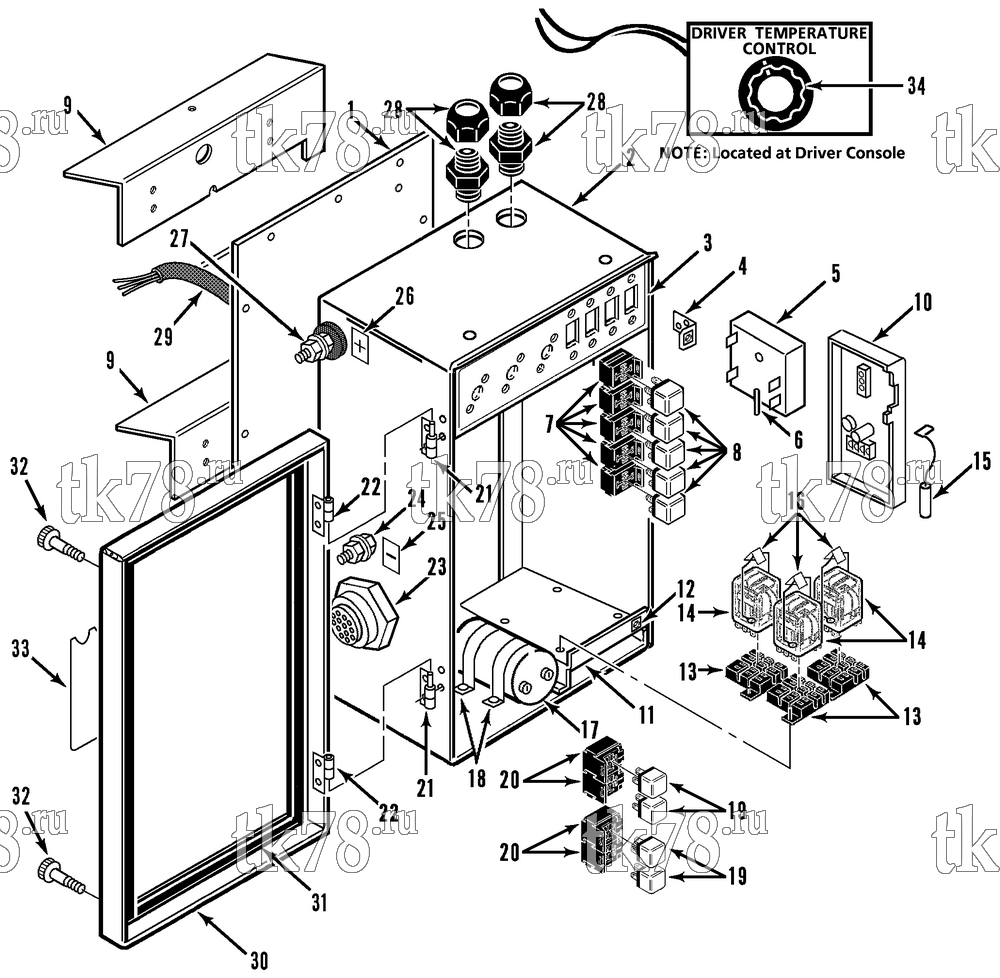

Установкa Thermo King схема CONTROL BOX – 105B3
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4010 | PANEL - back (see 105B2) | 1 | |
| 55-2991 | SCREW - back panel | 12 | ||
| 55-2001 | FLATWASHER | 24 | ||
| 55-4560 | NUT | 12 | ||
| 2 | 91-4012 | BOX - control | 1 | |
| 55-2969 | SCREW - box | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 3 | 91-1026 | BRACKET - circuit breaker (see 105B4) | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 4 | 91-2137 | BRACKET - cover | 1 | |
| 55-3059 | NUT - captive | 1 | ||
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 5 | 44-6428 | TIMER - solid state | 1 | |
| 55-5083 | SCREW - timer | 1 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-2999 | NUT | 1 | ||
| 6 | 44-4319 | RESISTOR (470K ohm) | 1 | |
| 7 | 44-5537 | SOCKET - relay | 5 | |
| 55-5975 | SCREW - socket | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 8 | 44-9112 | RELAY - mini (1pdt) | 5 | |
| 9 | 91-4014 | BRACKET - control box | 2 | |
| 10 | 44-8479 | THERMOSTAT | 1 | |
| 55-3000 | SCREW - thermostat | 1 | ||
| 55-2995 | SCREW - thermostat | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 11 | 91-1028 | BRACKET - relay | 1 | |
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 12 | 55-3059 | NUT - captive (cover) | 1 | |
| 13 | 44-3184 | SOCKET - relay | 3 | |
| 44-8011 | RESISTOR (4.7K ohm) | 1 | ||
| 14 | 44-4025 | RELAY (3pdt, 28VDC) | 1 | |
| 15 | 44-9606 | SENSOR - thermostat | 1 | |
| 91-1106 | BRACKET - sensor | 1 | ||
| 55-546 | CLAMP | 1 | ||
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 16 | 99-2027 | SPRING - holddown | 3 | |
| 55-2270 | RIVET - spring | 6 | ||
| 55-2771 | CLAMP - speednut | 3 | ||
| 17 | 44-4055 | CAPACITOR | 1 | |
| 18 | 55-5618 | CLAMP - capacitor | 2 | |
| 55-2995 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 19 | 44-9112 | RELAY - mini (1pdt) | 4 | |
| 20 | 44-5537 | SOCKET - relay | 4 | |
| 55-5975 | SCREW - socket | 4 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 21 | 99-8057 | HINGE - door (male) | 2 | |
| 22 | 99-8056 | HINGE - door (female) | 2 | |
| 55-2995 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 16 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2965 | NUT | 8 | ||
| 23 | 44-9604 | CONNECTOR & HARNESS - assembly | 1 | |
| 44-8010 | CONNECTOR - harness (16-pin) | 1 | ||
| 44-6851 | PIN | 5 | ||
| 44-9602 | PIN - sealing | 2 | ||
| 55-5398 | NUT - panel | 1 | ||
| 55-5347 | LOCKWASHER | 1 | ||
| 24 | 55-3167 | STUD - terminal (negative) | 1 | |
| 55-671 | NUT (hexjam) | 4 | ||
| 55-3066 | LOCKWASHER - internal tooth | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-3672 | LOCKWASHER - internal/external | 1 | ||
| 25 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 26 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 27 | 55-3167 | STUD - terminal (positive) | 1 | |
| 55-5901 | WASHER - shoulder (thermoplastic) | 1 | ||
| 55-5902 | FLATWASHER (thermoplastic) | 1 | ||
| 55-671 | NUT (hexjam) | 4 | ||
| 55-3066 | LOCKWASHER - internal tooth | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 28 | 55-5900 | CONNECTOR - liquid tite | 2 | |
| 29 | 44-9605 | HARNESS - control | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 99-2477 | NAMEPLATE - 24 Volt | 1 | ||
| 30 | 91-4013 | COVER - control box | 1 | |
| 31 | 99-8986 | STRIP - gasket (0.75 in wide x 25 ft) | A/R | |
| 99-5966 | STRIP - gasket (1 in wide x 50 ft) | A/R | ||
| 32 | 55-6771 | SCREW - cover | 2 | |
| 33 | 99-2789 | NAMEPLATE - TK Logo | 1 | |
| 34 | 44-7477 | POTENTIOMETER - driver temperature control | 1 | |
| 91-903 | KNOB - only | 1 |
