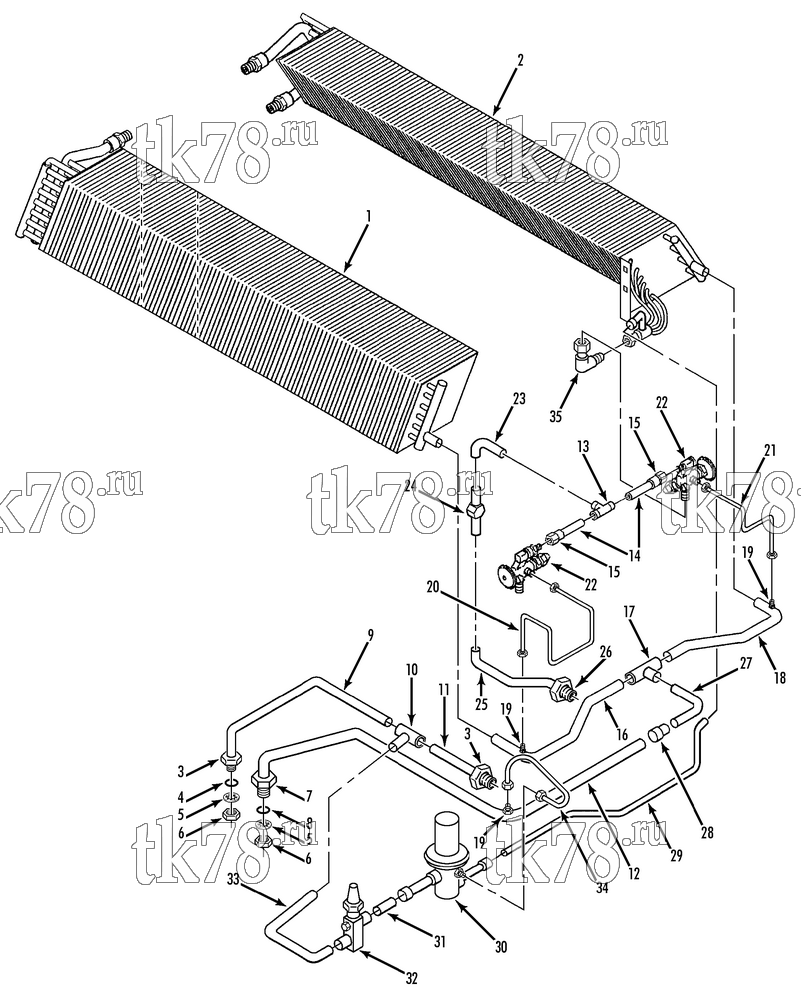

Установкa Thermo King схема EVAPORATOR REFRIGERATION (R1) – 104G3
Обновление от: 12/10/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1046 | COIL - evaporator (roadside, see 103F12) | 1 | |
| 2 | 67-1045 | COIL - evaporator (curbside, see 103F12) | 1 | |
| 3 | 55-6570 | ADAPTER - bulkhead (#24, o-ring seal) | 1 | |
| 4 | 33-1777 | O-RING | 1 | |
| 5 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 55-5741 | LOCKWASHER (1.5 id) | 1 | ||
| 6 | 55-6812 | NUT - bulkhead adapter (1-3/16) | 1 | |
| 55-7111 | NUT - bulkhead adapter (1-7/16-12) | 1 | ||
| 7 | 66-5247 | ADAPTER - bulkhead (#16, o-ring seal) | 2 | |
| 8 | 33-1785 | O-RING | 1 | |
| 9 | 66-6452 | TUBE - adapter to tee | 1 | |
| 10 | 55-7383 | TEE | 1 | |
| 11 | 66-6453 | TUBE - tee to adapter | 1 | |
| 12 | 66-6450 | TUBE - adapter to coupling | 1 | |
| 13 | 55-7142 | TEE | 1 | |
| 14 | 66-6012 | TUBE - tee to expansion valve | 2 | |
| 15 | 55-373 | NUT | 2 | |
| 16 | 66-6008 | TUBE - tee to coil (roadside) | 1 | |
| 17 | 55-6508 | TEE - suction | 1 | |
| 18 | 66-6007 | TUBE - tee to coil (curbside) | 1 | |
| 19 | 66-874 | FITTING - equalizer tube | 3 | |
| 20 | 66-6006 | TUBE - equalizer (roadside) | 1 | |
| 21 | 66-6005 | TUBE - equalizer (curbside) | 1 | |
| 22 | 66-5368 | VALVE - expansion | 2 | |
| 66-6933 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 91-3084 | SPACER - expansion valve | 2 | ||
| 55-5211 | U-BOLT - valve | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 23 | 66-6237 | TUBE - tee to indicator | 1 | |
| 24 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 25 | 66-6236 | TUBE - indicator to bulkhead | 1 | |
| 26 | 55-9699 | ADAPTER - bulkhead (#12, o-ring seal) | 2 | |
| 55-6393 | NUT - adapter (bulkhead, 13/16-16) | 1 | ||
| 27 | 66-6451 | TUBE - epr valve supply | 1 | |
| 28 | 55-2905 | COUPLING - reducing | 1 | |
| 29 | 66-6460 | TUBE - distributor to valve | 1 | |
| 55-2182 | BUSHING | 1 | ||
| 30 | 66-6461 | VALVE - discharge bypass | 1 | |
| 31 | 66-6459 | TUBE - valve to valve | 1 | |
| 32 | 66-2104 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 33 | 66-6458 | TUBE - valve to tee | 1 | |
| 34 | 66-6457 | TUBE - shutoff to suction | 1 | |
| 35 | 55-4435 | ELBOW (5/8 sld x 5/8 fl) | 1 | |
| 66-6462 | TUBE - elbow to expansion | 1 | ||
| 55-302 | NUT | 1 | ||
| 55-2182 | BUSHING (5/8 ftg x 1/2 sld) | 1 |
