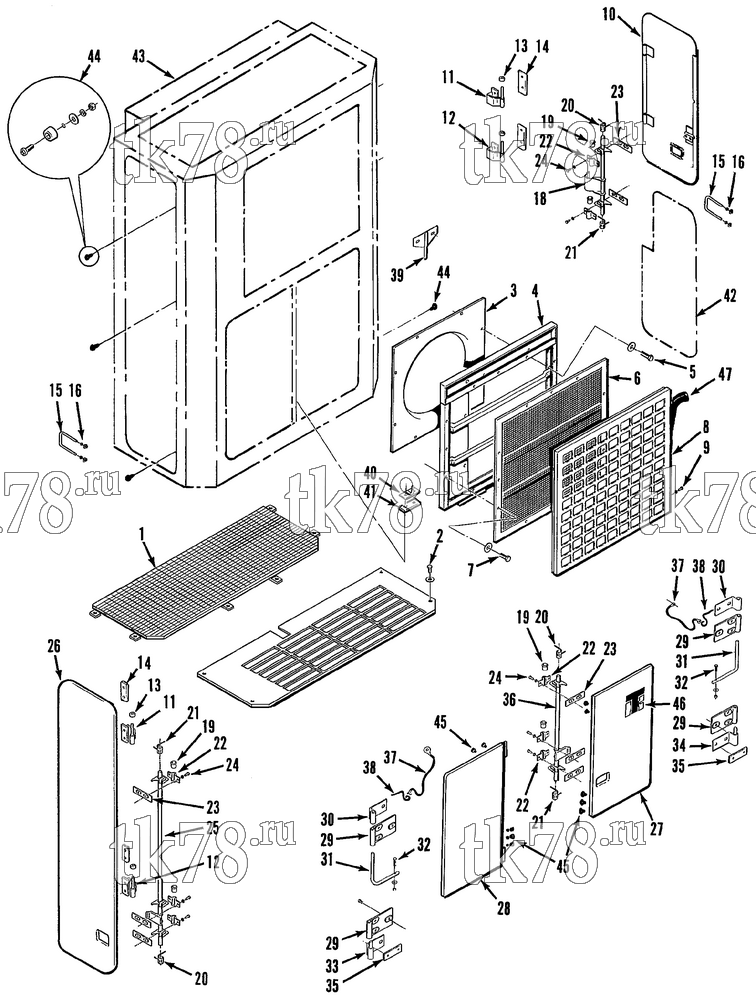

Установкa Thermo King схема FRAME, DOORS & GRILLES – 103D11
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3557 | GRILLE - condenser outlet | 1 | |
| 33-1834 | STRIP - sealing (neoprene) | 1 | ||
| 2 | 55-1587 | SCREW - grille | 6 | |
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-3059 | NUT - captive | 6 | ||
| 3 | 98-3309 | ORIFICE - condenser | 1 | |
| 4 | 98-3408 | FRAME - condenser grille | 1 | |
| 5 | 55-1587 | SCREW - orifice | 8 | |
| 55-3045 | WASHER - dome | 8 | ||
| 55-3085 | NUT - captive | 8 | ||
| 6 | 98-3310 | SCREEN - front | 1 | |
| 7 | 55-2991 | SCREW - screen | 18 | |
| 55-2964 | LOCKWASHER | 18 | ||
| 55-2001 | FLATWASHER | 18 | ||
| 55-4740 | WASHER - special | 6 | ||
| 55-4526 | NUT - captive | 12 | ||
| 8 | 98-3311 | GRILLE - inlet (front) | 1 | |
| 9 | 55-2977 | SCREW - grille | 8 | |
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 10 | 98-3929 | DOOR (roadside, left) | 1 | |
| 11 | 99-9988 | HINGE - side door | 2 | |
| 12 | 99-9989 | HINGE - side door | 2 | |
| 13 | 99-9687 | BUSHING - hinge | 4 | |
| 14 | 99-8725 | NUTSTRIP | 4 | |
| 55-1587 | SCREW - hinge | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 15 | 99-9990 | ROD - door strike | 4 | |
| 16 | 55-4953 | NUT | 16 | |
| 17 | Not Used | |||
| 18 | 91-3193 | HANDLE - door (w/o holes) | 1 | |
| 99-9978 | HANDLE - door (w/ holes) | 1 | ||
| 19 | 55-5960 | BUSHING | 4 | |
| 20 | 99-9973 | SPRING - latch (wound, cw) | 3 | |
| 21 | 99-9974 | SPRING - latch (wound, ccw) | 3 | |
| 22 | 99-9975 | RETAINER - latch | 8 | |
| 23 | 99-9976 | NUTSTRIP - short | 2 | |
| 99-9977 | NUTSTRIP - long | 4 | ||
| 24 | 55-3018 | SCREW - retainer | 12 | |
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 25 | 99-9979 | HANDLE - tube & latch | 1 | |
| 26 | 98-3928 | DOOR (curbside) | 1 | |
| 27 | 98-3312 | DOOR (front, roadside) | 1 | |
| 28 | 98-3313 | DOOR (front, curbside) | 1 | |
| 29 | 99-9971 | HINGE - front door | 4 | |
| 55-1587 | SCREW - hinge | 10 | ||
| 55-2977 | SCREW - hinge & clip | 2 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 30 | 99-9980 | HINGE - top (front) | 2 | |
| 55-1587 | SCREW - hinge | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 31 | 99-9981 | PIN - hinge | 2 | |
| 32 | 55-2991 | SCREW - pin | 2 | |
| 55-4560 | NUT | 2 | ||
| 33 | 99-9984 | HINGE & PIN (curbside) | 1 | |
| 34 | 99-9982 | HINGE & PIN (roadside) | 1 | |
| 55-1587 | SCREW - hinge | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 35 | 99-9983 | NUTSTRIP - hinge | 2 | |
| 36 | 99-9972 | HANDLE - tube & latch | 1 | |
| 37 | 99-8256 | STRAP - door (12 in lg) | 2 | |
| 38 | 99-8257 | CLIP - door strap | 2 | |
| 39 | 99-9985 | STRIKE - top | 1 | |
| 55-1587 | SCREW - strike | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 40 | 99-9986 | ROD & PLATE - bottom | 1 | |
| 55-2969 | SCREW - rod | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 41 | 99-9987 | NUTSTRIP | 1 | |
| 42 | N/A | PANEL - control (see 81B3) | 1 | |
| 43 | 98-3504 | FRAME - condenser (30s) | 1 | |
| 44 | 99-9428 | GROMMET - bumper | 5 | |
| 55-3511 | SCREW - grommet | 5 | ||
| 55-2201 | FLATWASHER | 5 | ||
| 55-4223 | NUT | 5 | ||
| 45 | 33-1435 | GROMMET - bumper | 9 | |
| 46 | 91-5205 | NAMEPLATE - TK Logo | 1 | |
| 47 | 33-1888 | GASKET - grille | 1 | |
| 48 | 98-3435 | GRILLE - condenser outlet (EMEIA) | 1 | |
| 55-2957 | SCREW - cover | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 |
