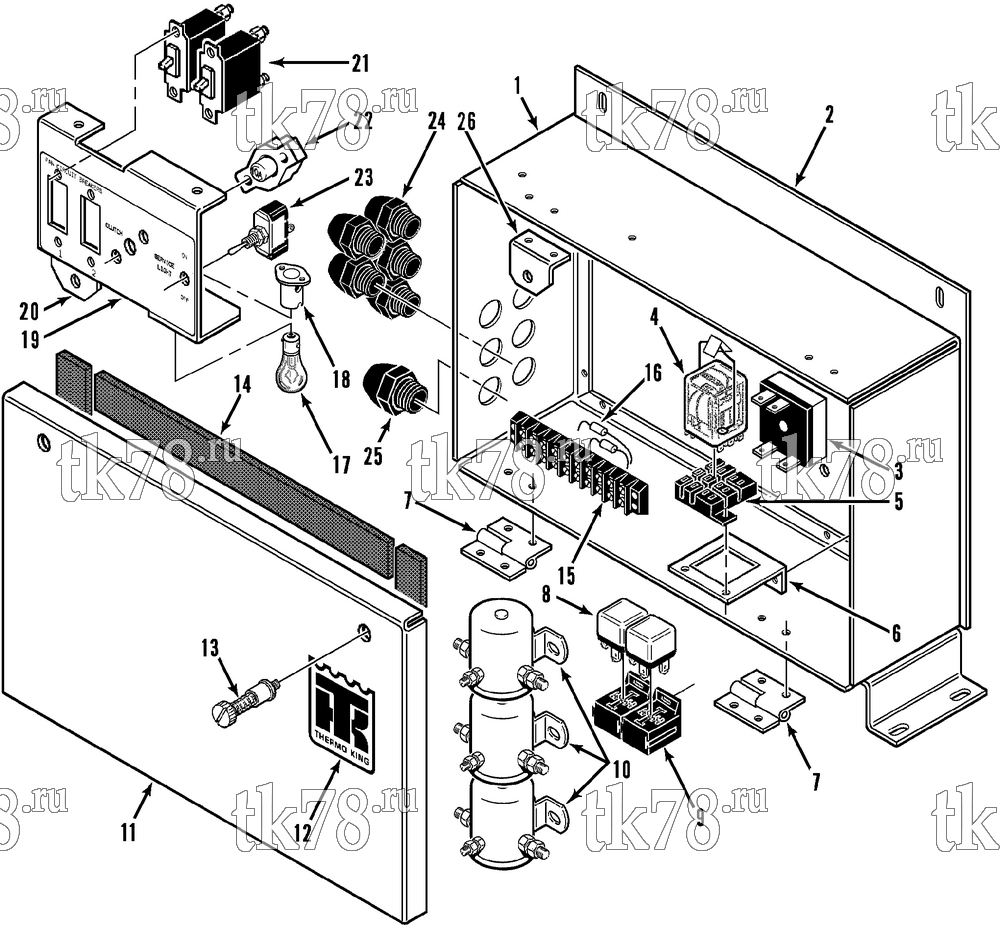

Установкa Thermo King схема CONDENSER CONTROL BOX – 103C9
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3538 | BOX - control | 1 | |
| 55-1587 | SCREW - box | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-6526 | INSERT - threaded | 6 | ||
| 2 | 91-3539 | PANEL - relay mounting | 1 | |
| 55-3027 | SCREW - panel | 14 | ||
| 55-2001 | FLATWASHER | 28 | ||
| 55-4560 | NUT (hexstop) | 14 | ||
| 3 | 44-6428 | TIMER - solid state | 1 | |
| 55-5083 | SCREW - timer | 1 | ||
| 55-3014 | LOCKWASHER | 1 | ||
| 55-3013 | FLATWASHER | 1 | ||
| 4 | 44-4025 | RELAY (3pdt, 28VDC) | 1 | |
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 55-3010 | RIVET - blind | 2 | ||
| 5 | 44-3184 | SOCKET - relay | 1 | |
| 6 | 91-1243 | BRACKET - relay socket | 1 | |
| 55-3015 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 7 | 99-8057 | HINGE - cover (male) | 2 | |
| 99-8056 | HINGE - cover (female) | 2 | ||
| 55-2995 | SCREW - hinge (hh) | 4 | ||
| 55-3015 | SCREW - hinge (truss head) | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT (hex) | 4 | ||
| 55-4560 | NUT (hexstop) | 4 | ||
| 8 | 44-9112 | RELAY (30VDC, 1pdt) | 2 | |
| 9 | 44-5537 | SOCKET - relay | 2 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 10 | 41-3987 | SOLENOID (24V) | 3 | |
| 55-3021 | SCREW - solenoid | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 11 | 91-3545 | COVER - control box | 1 | |
| 91-3546 | NAMEPLATE - Wiring Diagram | 1 | ||
| 12 | 99-2789 | NAMEPLATE - TK Logo | 1 | |
| 13 | 55-5396 | SCREW - cover | 2 | |
| 14 | 99-8986 | STRIP - gasket (50 ft) | A/R | |
| 15 | 44-4186 | BOARD - terminal | 1 | |
| 91-3540 | MARKSTRIP | 1 | ||
| 55-2868 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 16 | 44-7889 | DIODE | 2 | |
| 17 | 44-984 | BULB - service light | 1 | |
| 18 | 44-5112 | LIGHT - service | 1 | |
| 19 | 91-3543 | PANEL - circuit breaker | 1 | |
| 55-2995 | SCREW - panel | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 20 | 44-7583 | JUMPER - circuit breaker | 1 | |
| 55-798 | SCREW (sq hd, 3/8-16) | 1 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 3 | ||
| 55-3672 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-2640 | NUT (hex) | 2 | ||
| 21 | 44-5494 | BREAKER - circuit (65 amp) | 2 | |
| 55-3513 | SCREW - breaker | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 22 | 44-7216 | BREAKER - circuit (10 amp) | 1 | |
| 55-2991 | SCREW - breaker | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 23 | 44-1357 | SWITCH - service light | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 24 | 55-6153 | CONNECTOR - liquid tite | 5 | |
| 55-2836 | LOCKNUT | 5 | ||
| 25 | 55-5900 | CONNECTOR - liquid tite | 1 | |
| 26 | 91-2137 | BRACKET - cover | 2 | |
| 55-2995 | SCREW - bracket | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 2 |
