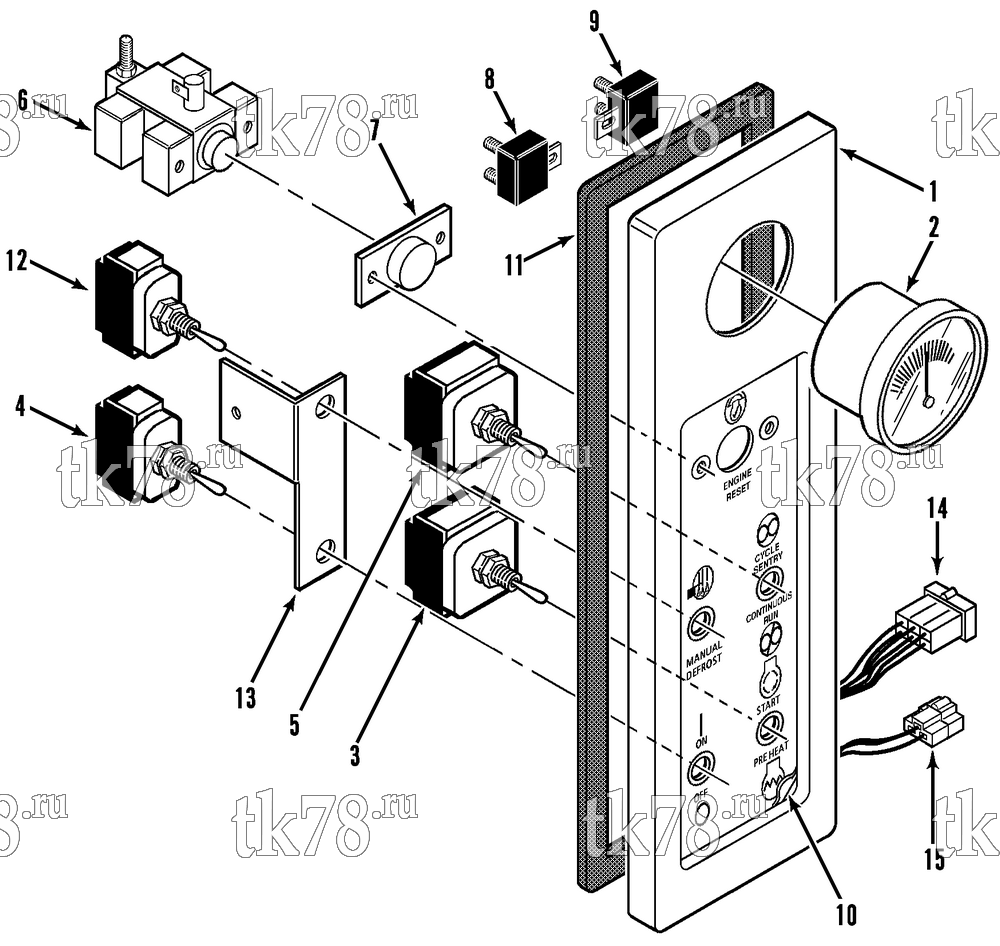

Установкa Thermo King схема SWITCH PANEL (SB-III SR MP+) – 100E1
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1439 | PANEL - switch | 1 | |
| 55-6475 | STUD - control panel | 2 | ||
| 2 | 44-3258 | AMMETER | 1 | |
| 44-3258 OEM | Амперметр, KD/MD/RD/TD-II / SB-II/III | 2 400 ₽ |
|
|
| 55-346 | NUT - ammeter | 2 | ||
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 3 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 4 | 44-7792 | SWITCH - on/off | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 5 | 44-7930 | SWITCH - Cycle Sentry | 1 | |
| 55-1322 | PLUG - button | 1 | ||
| 6 | 40-1082 | SWITCH - high temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 40-1082 | SWITCH | 1 | ||
|
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 55-1844 | SCREW - switch | 2 | ||
| 55-3027 | WASHER - sealing | 2 | ||
| 7 | 33-1835 | SEAL - switch | 1 | |
| 8 | 44-6146 | BREAKER - circuit (40 amp, CB3) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 9 | 44-8956 | BREAKER - circuit (30 amp, CB4) | 1 | |
| 55-4560 | NUT - circuit breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 10 | 91-1608 | NAMEPLATE - switch | 1 | |
| 11 | 33-2125 | GASKET - panel | 1 | |
| 12 | 44-7793 | SWITCH - defrost | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 13 | 91-2694 | BRACKET - circuit breaker | 1 | |
| 55-4560 | NUT - circuit breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 14 | 44-4925 | CONNECTOR (6-pin) | 1 | |
| 15 | 44-8938 | CONNECTOR (3-pin) | 1 | |
| 44-5139 | TERMINAL - fingrip (14-16 gauge) | A/R |
