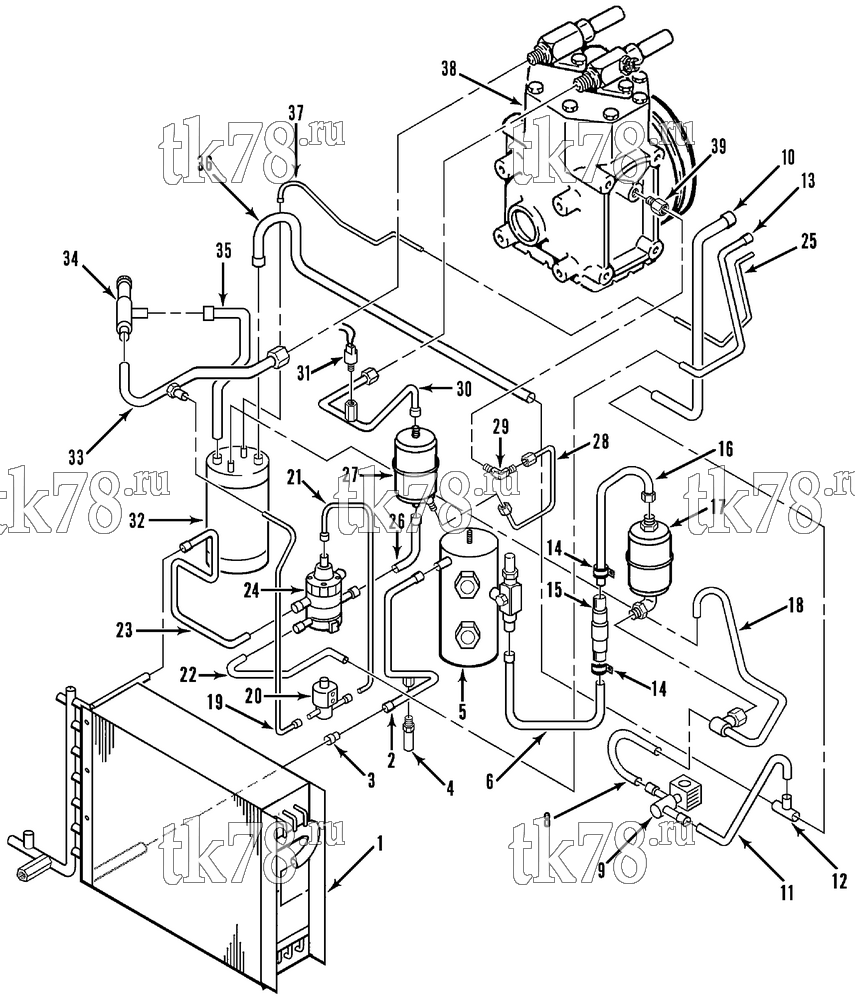

Установкa Thermo King схема REFRIGERATION - CONDENSER (6/91 & After) – 100B5
Обновление от: 11/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-907 | COIL - condenser/radiator | 1 | |
| 55-3059 | NUT - captive | 16 | ||
| 55-2977 | SCREW - coil | 7 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 55-4415 | NUT - captive | 2 | ||
| 2 | 66-5557 | TUBE - condenser to receiver | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 3 | 55-3627 | COUPLING - reducing | 1 | |
| 4 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 67-1180 | TANK - receiver | 1 | |
| 6 | 66-5647 | TUBE - receiver to tee | 1 | |
| 8 | 66-6074 | TUBE - tee to solenoid | 1 | |
| 9 | 61-283 | VALVE - solenoid (liquid refrigerant, see 125C10) | 1 | |
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 10 | 66-5573 | TUBE - suction (bulkhead to tee) | 1 | |
| 11 | 66-6069 | TUBE - solenoid valve to tee | 1 | |
| 12 | 55-6712 | TEE (7/8 x 7/8 x 3/8) | 1 | |
| 13 | 66-5575 | TUBE - defrost to bulkhead | 1 | |
| 14 | 55-547 | CLAMP - tube (0.375 dia) | 2 | |
| 55-549 | CLAMP - tube (0.5 dia) | 2 | ||
| 55-2991 | SCREW - clamp | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 15 | 66-5763 | VALVE - check | 1 | |
| 16 | 66-6071 | TUBE - check valve to dehydrator | 1 | |
| 17 | 61-800 | DEHYDRATOR (o-ring seal) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 2 550 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 400 ₽ |
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 18 | 66-6070 | TUBE - dehydrator to accumulator | 1 | |
| 19 | 66-6072 | TUBE - pilot solenoid to suction tube | 1 | |
| 20 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 21 | 66-6068 | TUBE - 3-way to pilot solenoid | 1 | |
| 22 | 66-5562 | TUBE - 3-way to hot gas | 1 | |
| 23 | 66-5554 | TUBE - 3-way to condenser | 1 | |
| 24 | 61-1236 | VALVE - 3-way (see 101B6) | 1 | |
| 25 | 66-5574 | TUBE - liquid to bulkhead | 1 | |
| 26 | 66-5565 | TUBE - oil separator to 3-way | 1 | |
| 27 | 66-8547 | SEPARATOR - oil | 1 | |
| 91-1938 | NAMEPLATE - oil outlet | 1 | ||
| 91-1939 | NAMEPLATE - service part number | 1 | ||
| 28 | 66-5569 | TUBE - oil separator to compressor | 1 | |
| 29 | 55-308 | ELBOW | 1 | |
| 30 | 66-5555 | TUBE - compressor to oil separator | 1 | |
| 31 | 44-7992 | SWITCH - hpco (R12) | 1 | |
| 32 | 67-910 | TANK - accumulator | 1 | |
| 33 | 66-6073 | TUBE - cpr valve to compressor | 1 | |
| 34 | 66-5013 | VALVE - cpr | 1 | |
| 55-6387 | BUSHING (7/8 ftg, 3/4 sld) | 1 | ||
| 55-5293 | BUSHING (7/8 ftg 5/8 sld) | 1 | ||
| 35 | 66-5568 | TUBE - accumulator to cpr valve | 1 | |
| 36 | 66-5564 | TUBE - tee to accumulator | 1 | |
| 37 | 66-5563 | TUBE - accumulator to liquid tube | 1 | |
| 38 | 20-176 | KIT - compressor w/valves (See 114F11) | 1 | |
| 39 | 66-5571 | ADAPTER - compressor oil return | 1 |
