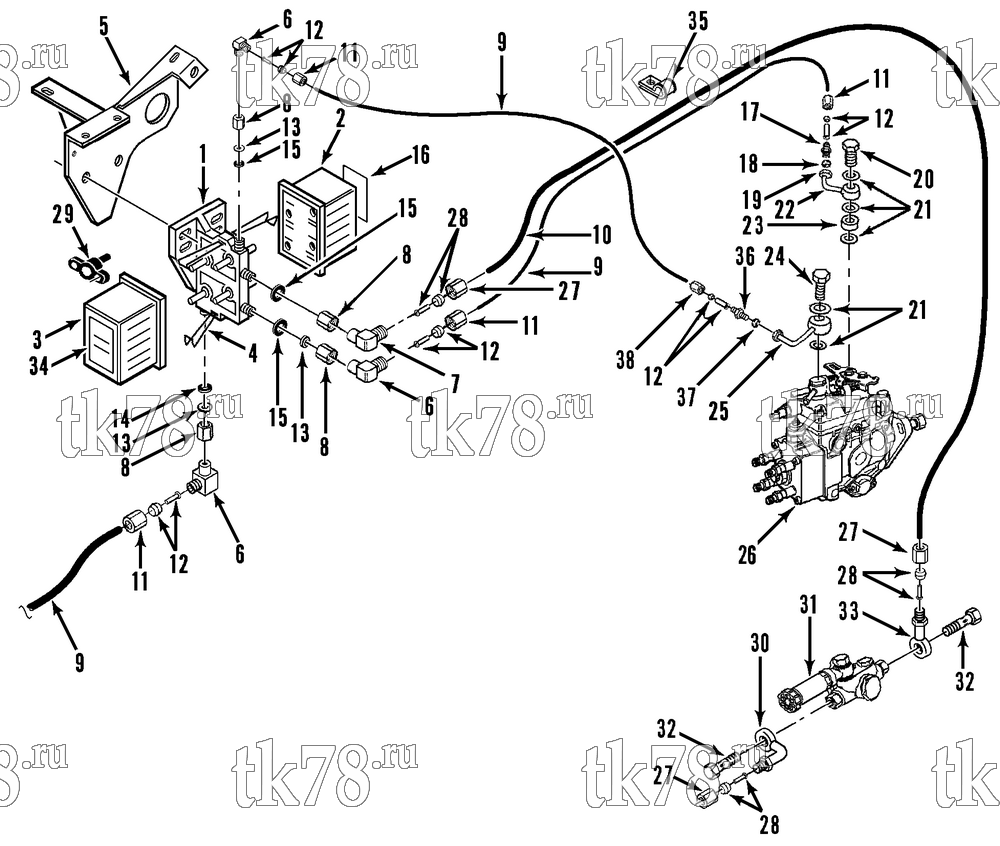

Установкa Thermo King схема FUEL FILTER & HOSES – 100B12
Обновление от: 2/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7263 | BASE - fuel filter (replaced with kit 10-325) | 1 | |
| 55-7004 | SCREW - base | 2 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 55-7005 | NUT | 2 | ||
| 2 | 11-7264 | ELEMENT - water separator | 1 | |
|
US-11-7264 | Элемент топливного фильтра, SB-III/SMX | 3 320 ₽ |
|
| 3 | 11-6285 | ELEMENT - fuel filter | 1 | |
|
US-11-6285 | Элемент топливного фильтра, SB-III/SMX | 3 320 ₽ |
|
| 4 | 11-6499 | CLAMP - element | 4 | |
| 5 | 91-2945 | BRACKET - filter & gauge (before 6/18/92) | 1 | |
| 91-4135 | BRACKET - filter & gauge (6/18/92 & after) | 1 | ||
| 55-4606 | SCREW - bracket | 4 | ||
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 6 | 11-7741 | FITTING - elbow (1/4) | 3 | |
| 7 | 11-7742 | FITTING - elbow (3/8) | 1 | |
| 8 | 55-5961 | NUT - fitting | 4 | |
| 9 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 10 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 11 | 11-4841 | NUT (1/4) | 3 | |
| 12 | 10-243 | KIT - sleeve & eyelet (1/4) | 3 | |
| 13 | 55-5962 | WASHER - hose (1/4) | 3 | |
| 14 | 33-1885 | GROMMET - hose (1/4) | 1 | |
| 15 | 33-1886 | GROMMET - hose (3/8) | 3 | |
| 16 | 91-2946 | NAMEPLATE - Water Separator | 1 | |
| 17 | 11-5927 | CONNECTOR | 1 | |
| 18 | 11-5981 | SLEEVE | 1 | |
| 19 | 11-5926 | NUT | 1 | |
| 20 | 55-5587 | BOLT - eye | 1 | |
| 21 | 33-1668 | GASKET - connector | 5 | |
| 22 | 11-7436 | CONNECTOR - fuel inlet | 1 | |
| 23 | 55-5588 | SPACER | 1 | |
| 24 | 44-9028 | VALVE - bleed | 1 | |
| 25 | 11-7663 | CONNECTOR - fuel return | 1 | |
| 26 | 8101-281 | PUMP - injection (reman, see 100C12) | 1 | |
| 27 | 11-4941 | NUT (3/8) | 2 | |
| 28 | 10-242 | KIT - sleeve & eyelet (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 29 | 11-7481 | PLUG - water sensor | 1 | |
| 55-7137 | SCREW - plug | 2 | ||
| 30 | 11-7499 | FITTING - banjo (elbow) | 1 | |
| 31 | 11-7433 | PUMP - fuel (see 100C9) | 1 | |
|
11-7433 OEM | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 24 100 ₽ |
|
|
PP-11-7433 | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 6 680 ₽ |
|
| 32 | 55-5524 | BOLT - eye | 2 | |
| 11-2854 | FILTER - screen | 1 | ||
| 33 | 11-7707 | FITTING - banjo (straight) | 1 | |
| 34 | 91-2947 | NAMEPLATE - fuel filter | 1 | |
| 35 | 91-372 | CLAMP - hose | 2 | |
| 55-6990 | SCREW - clamp | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 55-6991 | INSERT | 2 | ||
| 36 | 11-5927 | CONNECTOR (1/4) | 1 | |
| 37 | 11-5981 | SLEEVE | 1 | |
| 38 | 11-5926 | NUT - hose | 1 |
